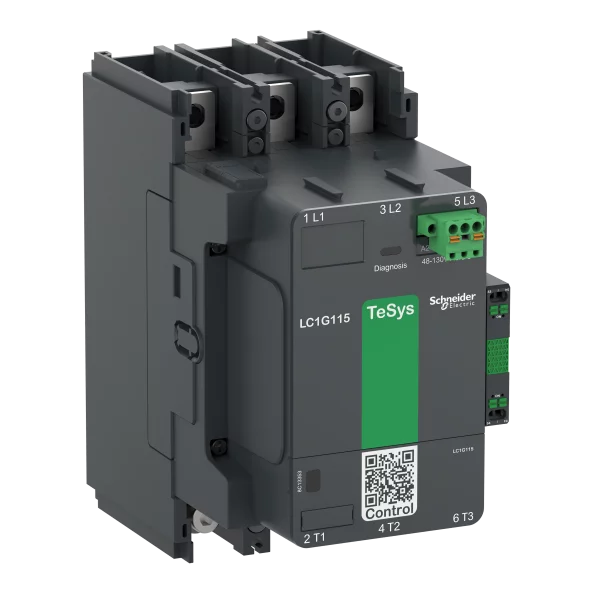

CONTACTOR TESYS GIGA 3P (3 NO) AC-3 <=

TeSys

TeSys Giga

Contactor

LC1G

Comutarea puterii
Comanda motor

AC-1
AC-3
AC-3e
AC-4
AC-5A
AC-5B
AC-6a
AC-6b
AC-8a
AC-8b
DC-1
DC-3
DC-5

3P

<= 1000 V c.a. 50/60 Hz
<= 460 V c.c.

305 A (at <40 °C) at <= 1000 V AC-1
185 A (at <60 °C) at <= 440 V AC-3

100...250 V c.a. 50/60 Hz
100...250 V c.c.

Operaţional: 0.8 Uc Min...1.1 Uc Max (at <60 °C)
Eliminare: 0.1 Uc Max...0.45 Uc Min (at <60 °C)

8 kV

III

305 A (at 40 °C)

1610 A at 440 V

1,5 kA - 10 s
0,92 kA - 30 s
0,74 kA - 1 min
0,5 kA - 3 min
0,4 kA - 10 min

200 A aM at <= 440 V for motor
160 A aM at <= 690 V for motor
315 A gG at <= 690 V
300 A UL Type J at <= 600 V

0,00017 Ohm

1000 V

20 W AC-1 - Ith 305 A
6 W AC-3 - Ith 185 A

LC1G

3 NO

1 NO + 1 NC

55 kW at 230 V c.a. 50/60 Hz (AC-3e)
90 kW at 400 V c.a. 50/60 Hz (AC-3e)
90 kW at 415 V c.a. 50/60 Hz (AC-3e)
110 kW at 440 V c.a. 50/60 Hz (AC-3e)
110 kW at 500 V c.a. 50/60 Hz (AC-3e)
110 kW at 690 V c.a. 50/60 Hz (AC-3e)
75 kW at 1000 V c.a. 50/60 Hz (AC-3e)
55 kW at 230 V c.a. 50/60 Hz (AC-3)
90 kW at 400 V c.a. 50/60 Hz (AC-3)
90 kW at 415 V c.a. 50/60 Hz (AC-3)
110 kW at 440 V c.a. 50/60 Hz (AC-3)
110 kW at 500 V c.a. 50/60 Hz (AC-3)
110 kW at 690 V c.a. 50/60 Hz (AC-3)
75 kW at 1000 V c.a. 50/60 Hz (AC-3)
55 kW at 230 V c.a. 50/60 Hz (AC-4)
90 kW at 400 V c.a. 50/60 Hz (AC-4)
90 kW at 415 V c.a. 50/60 Hz (AC-4)
100 kW at 440 V c.a. 50/60 Hz (AC-4)
110 kW at 500 V c.a. 50/60 Hz (AC-4)
110 kW at 690 V c.a. 50/60 Hz (AC-4)
75 kW at 1000 V c.a. 50/60 Hz (AC-4)

50 CP at 200/208 V 60 Hz
60 CP at 230/240 V 60 Hz
125 CP at 460/480 V 60 Hz
150 CP at 575/600 V 60 Hz

2310 A at 440 V

Limitare de varf bidirectionala incorporata

B10d = 400000 cic contactor cu sarcină nominală conformitate cu EN/ISO 13849-1
B10d = 3000000 cic contactor cu sarcină mecanică conformitate cu EN/ISO 13849-1

8 Mcycles

540 VA

380 W

12,4 VA

7,8 W

40...70 ms închidere
15...50 ms deschidere

600 cic/h AC-3
600 cic/h AC-3e
300 cic/h AC-1
150 cic/h AC-4

Circuit de alimentare: bara 2 - busbar cross section: 25 x 6 mm
Circuit de alimentare: terminale cu papuci 1 185 mm²
Circuit de alimentare: conexiune cu surub
Circuit de comanda: push-in 1 0,2…2,5 mm² - cable stiffness: torsadat fara terminale de cablu
Circuit de comanda: push-in 1 0,25…2,5 mm² - cable stiffness: flexibil cu pini
Circuit de comanda: push-in 2 0,5…1,0 mm² cu pini
Circuit de comanda: push-in 0,75…2,5 mm² - cable stiffness: torsadat fara terminale de cablu
Circuit de comanda: push-in 0,75…2,5 mm² - cable stiffness: flexibil cu pini

35 mm

Placa

EN/IEC 60947-4-1
SR EN 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
JIS C8201-4-1
JIS C8201-5-1
IEC 60335-1:Clause 30.2
IEC 60335-2-40:Annex JJ
UL 60335-1
UL 60335-2-40:Annex JJ

Schema CB
CCC
cULus
EAC
UE
UKCA
EU-RO-MR by DNV-GL

18 N.m

193 mm

108 mm

193 mm

3,5 kg

IP2x parte frontala fara capace de protectie conformitate cu SR EN 60529
IP2x parte frontala fara capace de protectie conformitate cu VDE 0106

-25…60 °C

-60…80 °C

Vibraţii 5…300 Hz 2 gn contactor deschis
Vibraţii 5…300 Hz 4 gn contactor inchis
Şocuri 10 gn 11 ms contactor deschis
Şocuri 15 gn 11 ms contactor inchis

Gri inchis

TH

-40…70 °C la Uc

PCE

1

25,5 cm

17,5 cm

32 cm

4,584 kg

S06

12

75 cm

60 cm

80 cm

68,454 kg
